AR1FS

DSM Positions and addresses map
DSM Positions Ball Map
Board-data cable connector, cable paddlecard maps and cable-patch panel connector
Power Cable Connector Map
Input pin mapping.

DSM Positions and addresses maps

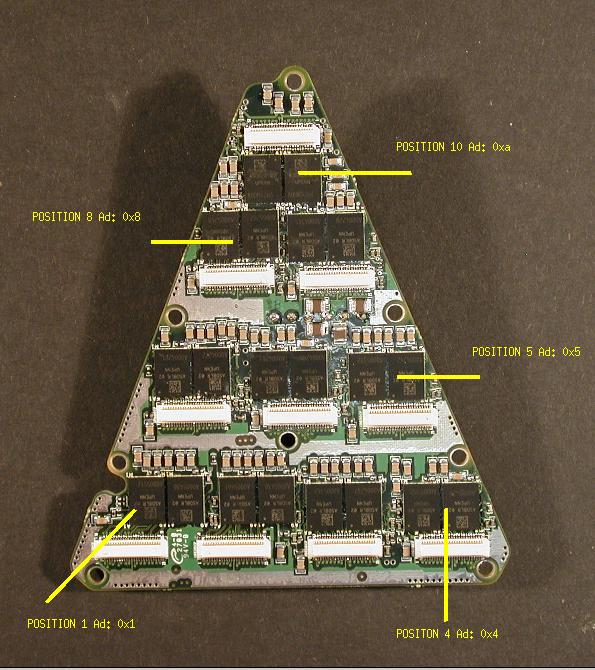

ASD side

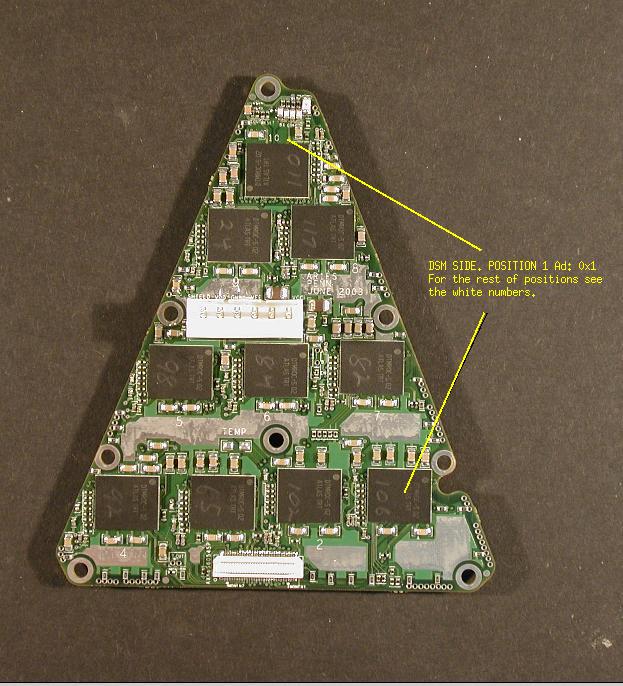

DSM-DTMROC side

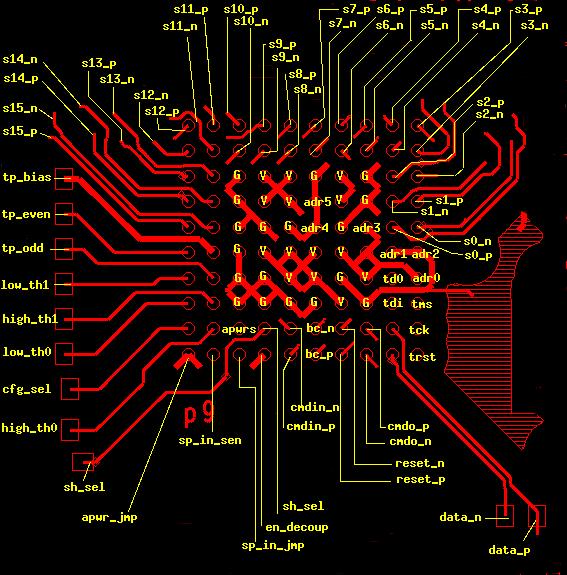

DSM ball map

This is the DSM ball map for position 9. View from top to bottom DSM side of the board (acute angle upwards). It is the same for all positions except for position 10, where is inverted.

In text file (the original DSM FBGA ball map from Mitch)

	|A	|B	|C	|D	|E	|F	|G	|H	|I	|K	|
-----------------------------------------------------------------------------------------
1	|S3_P	|S4_P	|S5_P	|S6_P	|S7_P	|S8_P	|S9_P	|S10_P	|S11_P	|S12_P	|
-----------------------------------------------------------------------------------------
2	|S3_N	|S4_N	|S5_N	|S6_N	|S7_N	|S8_N	|S9_N	|S10_N	|S11_N	|S12_N	|
-----------------------------------------------------------------------------------------
3	|S2_N	|S2_P	|G	|V	|G	|V	|V	|G	|S13_N	|S13_P	|
-----------------------------------------------------------------------------------------
4	|S1_N	|S1_P	|G	|V	|ADR5	|V	|V	|G	|S14_N	|S14_P	|
-----------------------------------------------------------------------------------------
5	|S0_N	|S0_P	|ADR3	|G	|ADR4	|G	|G	|G	|S15_N	|S15_P	|
-----------------------------------------------------------------------------------------
6	|ADR2	|ADR1	|EN_DEC	|V	|V	|V	|V	|G	|TP_BIAS|TP_EV	|
-----------------------------------------------------------------------------------------
7	|ADR0	|TD0	|V	|G	|V	|V	|G	|G	|TP_ODD	|THR_L1	|
-----------------------------------------------------------------------------------------
8	|TMS	|TD1	|G	|V	|G	|G	|G	|G	|TH_H1	|THR_L0	|
-----------------------------------------------------------------------------------------
9	|TCK	|DATA_P	|CMDO_P	|RESET_N|BC_NEG	|CMDIN_N|SH_SEL	|APWR_S	|TH_H0	|CFGSEL	|
-----------------------------------------------------------------------------------------
10	|TRST	|DATA_N	|CMDO_N	|RESET_P|BC_POS	|CMDIN_P|EN_DECO|SP_IN_J|SP_IN_S|APWR_J	|
-----------------------------------------------------------------------------------------

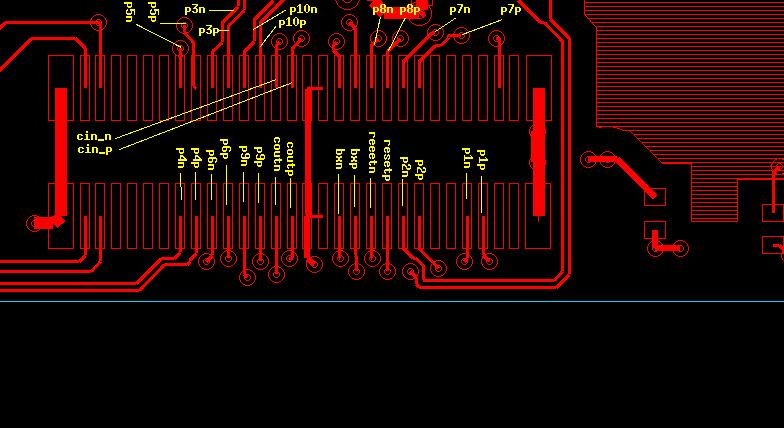

Board connector and cable paddlecard maps
Connector map view from the top looking bottom at the board on the DSM side. Acute angle upwards.

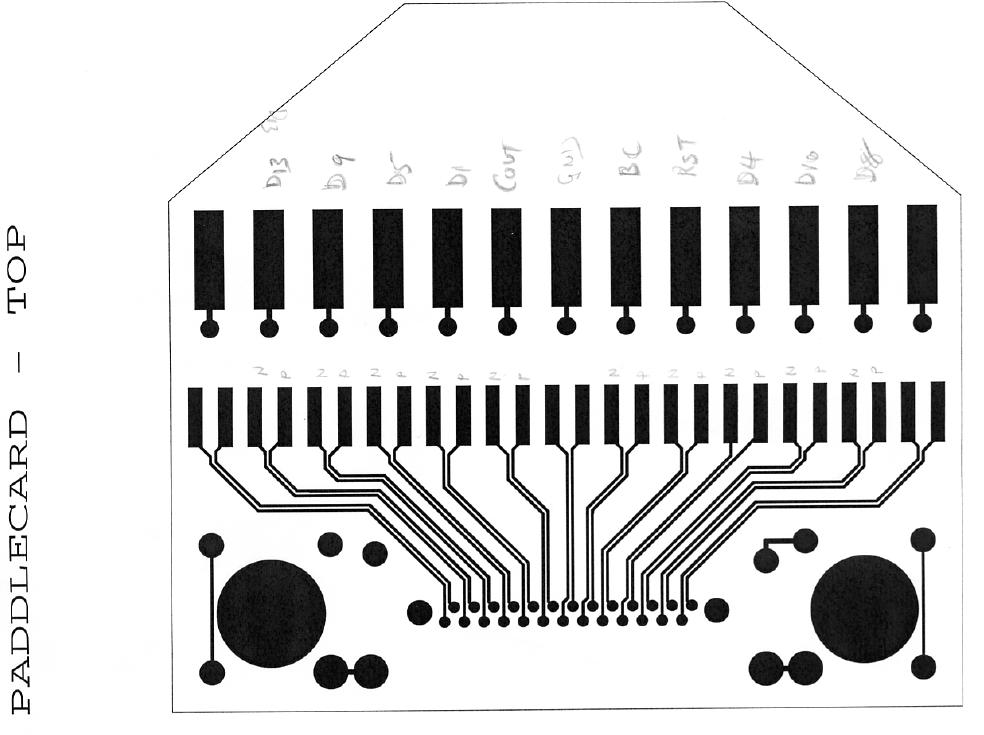

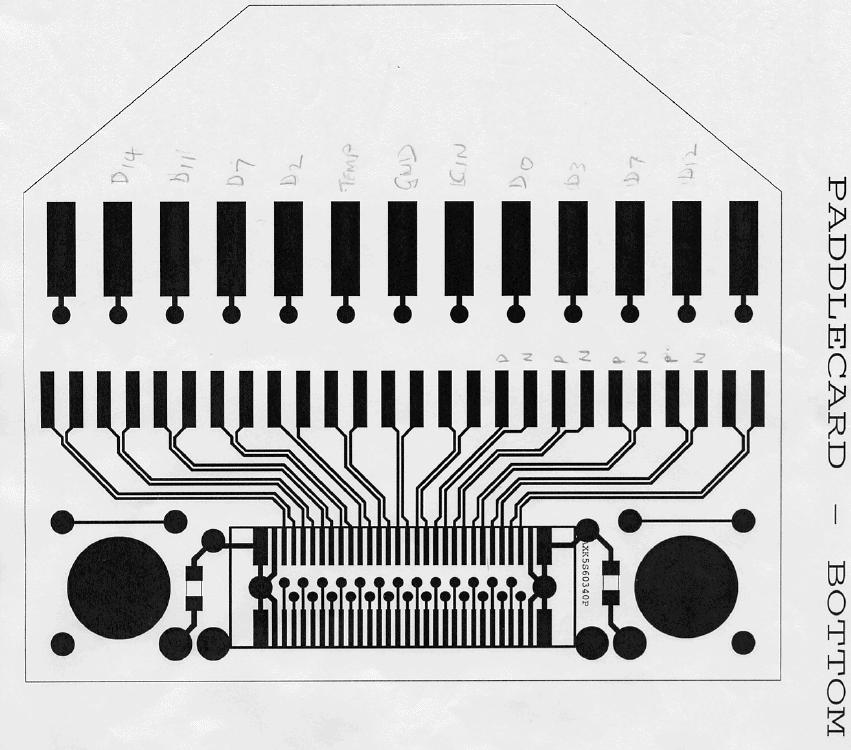

Not-so-ugly cable paddle card (Active board side):

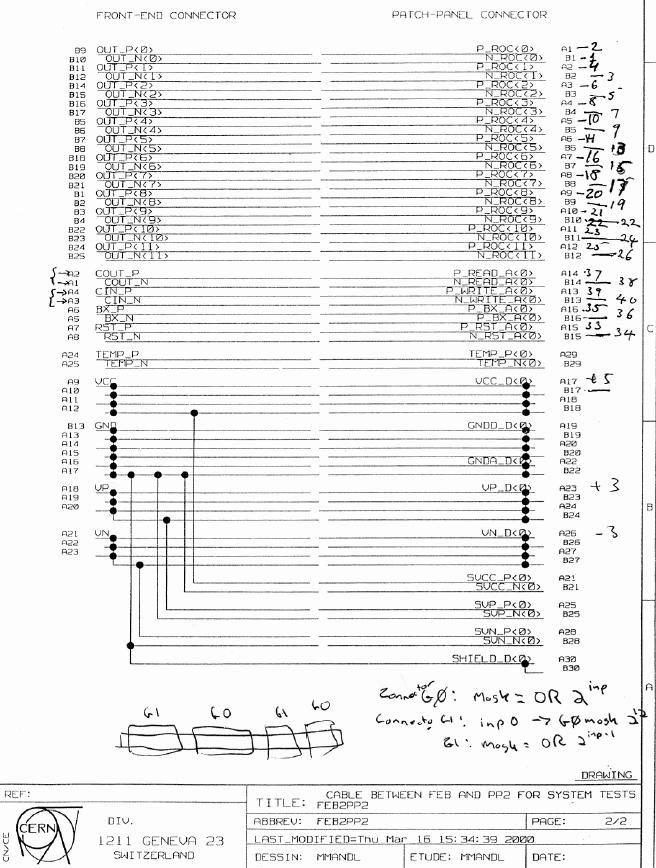

Patch panel-Cable connector

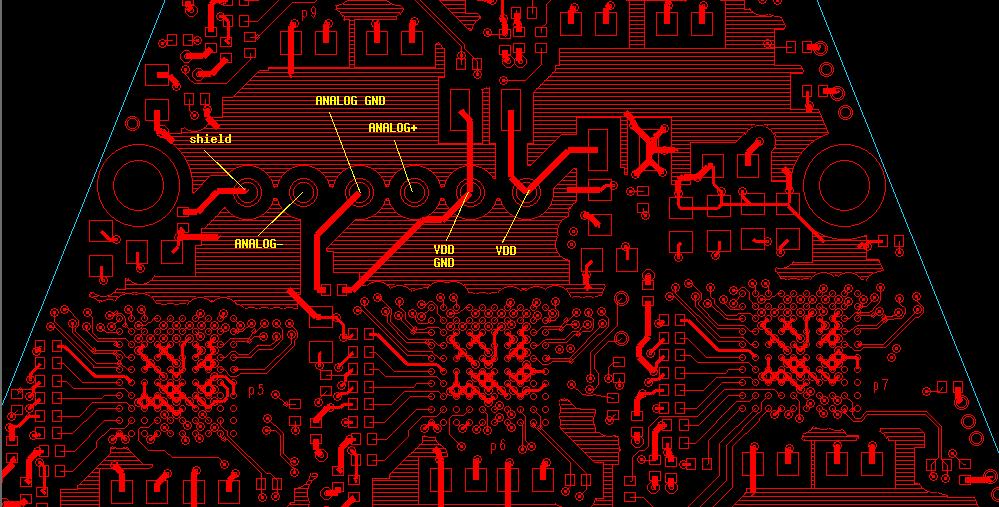

Power Cable Connector Map
Looking from at the board from the DTMROC side, acute angle upwards.

Input mapping

Position 1

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A8	15
2	6	IN1A7	14
3	17	IN1A3	10
4	14	IN1A4	11
5	9	IN1A6	13
6	12	IN1A5	12
7	20	IN1A2	9
8	23	IN1A1	8
9	28	IN0A1	0
10	31	IN0A2	1
11	42	IN0A6	5
12	39	IN0A5	4
13	34	IN0A3	2
14	37	IN0A4	3
15	45	IN0A7	6
16	48	IN0A8	7

Position 2

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A8	15
2	6	IN1A7	14
3	17	IN1A3	10
4	14	IN1A4	11
5	9	IN1A6	13
6	12	IN1A5	12
7	20	IN1A2	9
8	23	IN1A1	8
9	28	IN0A1	0
10	31	IN0A2	1
11	42	IN0A6	5
12	39	IN0A5	4
13	34	IN0A3	2
14	37	IN0A4	3
15	45	IN0A7	6
16	48	IN0A8	7

Position 3

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A8	15
2	6	IN1A6	13
3	17	IN0A6	5
4	14	IN0A8	7
5	9	IN1A4	11
6	12	IN1A2	9
7	20	IN0A3	2
8	23	IN0A1	0
9	28	IN0A2	1
10	31	IN0A4	3
11	42	IN1A3	10
12	39	IN1A1	8
13	34	IN0A5	4
14	37	IN0A7	6
15	45	IN1A5	12
16	48	IN1A7	14

Position 4

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A7	14
2	6	IN1A5	12
3	17	IN0A3	2
4	14	IN0A5	4
5	9	IN1A3	10
6	12	IN0A8	7
7	20	IN0A2	1
8	23	IN0A1	0
9	28	IN0A4	3
10	31	IN0A6	5
11	42	IN1A4	11
12	39	IN1A2	9
13	34	IN0A7	6
14	37	IN1A1	8
15	45	IN1A6	13
16	48	IN1A8	15

Position 5 --> This is the old WRONG version

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A7	14
2	6	IN1A5	12
3	17	IN0A3	2
4	14	IN0A5	4
5	9	IN1A3	10
6	12	IN0A8	7
7	20	IN0A2	1
8	23	IN0A1	0
9	28	IN0A4	15
10	31	IN0A6	13
11	42	IN1A4	8
12	39	IN1A2	6
13	34	IN0A7	9
14	37	IN1A1	11
15	45	IN1A6	5
16	48	IN1A8	3

Position 5 --> This is the new RIGTH? version

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A7	14
2	6	IN1A5	12
3	17	IN0A3	2
4	14	IN0A5	4
5	9	IN1A3	10
6	12	IN0A8	7
7	20	IN0A2	1
8	23	IN0A1	0
9	28	IN0A4	3
10	31	IN0A6	5
11	42	IN1A4	11
12	39	IN1A2	9
13	34	IN0A7	6
14	37	IN1A1	8
15	45	IN1A6	13
16	48	IN1A8	15

Position 6

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A7	14
2	6	IN1A5	12
3	17	IN0A3	2
4	14	IN0A5	4
5	9	IN1A3	10
6	12	IN0A8	7
7	20	IN0A2	1
8	23	IN0A1	0
9	28	IN0A4	3
10	31	IN0A6	5
11	42	IN1A4	11
12	39	IN1A2	9
13	34	IN0A7	6
14	37	IN1A1	8
15	45	IN1A6	13
16	48	IN1A8	15

Position 7

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A8	15
2	6	IN1A6	13
3	17	IN0A6	5
4	14	IN0A8	7
5	9	IN1A4	11
6	12	IN1A2	9
7	20	IN0A3	2
8	23	IN0A1	0
9	28	IN0A2	1
10	31	IN0A4	3
11	42	IN1A3	10
12	39	IN1A1	8
13	34	IN0A5	4
14	37	IN0A7	6
15	45	IN1A5	12
16	48	IN1A7	14

Position 8

Protection Input Board pin	NAIS	Software
1	3	15
2	6	13
3	17	5
4	14	7
5	9	11
6	12	9
7	20	2
8	23	0
9	28	1
10	31	3
11	42	10
12	39	8
13	34	4
14	37	6
15	45	12
16	48	14

Position 9

Protection Input Board pin	NAIS	ASD chan	Software
1	3	IN1A7	14
2	6	IN1A5	12
3	17	IN0A3	2
4	14	IN0A5	4
5	9	IN1A3	10
6	12	IN0A8	7
7	20	IN0A2	1
8	23	IN0A1	0
9	28	IN0A4	3
10	31	IN0A6	5
11	42	IN1A4	11
12	39	IN1A2	9
13	34	IN0A7	6
14	37	IN1A1	8
15	45	IN1A6	13
16	48	IN1A8	15

Position 10

Protection Input Board pin	NAIS	ASD chan
1	3	IN0A2
2	6	IN0A4
3	17	IN1A3
4	14	IN1A1
5	9	IN0A5
6	12	IN0A7
7	20	IN1A5
8	23	IN1A7
9	28	IN1A8
10	31	IN1A6
11	42	IN0A6
12	39	IN0A8
13	34	IN1A4
14	37	IN1A2
15	45	IN0A3
16	48	IN0A1

Antoni Munar

Last modified: Wed Jul 30 00:33:38 EDT 2003
