L2 Alignment with combined tracks
Both combined + TRT only tracks

Wrt to Si constants for first reprocessing

Release -tag=15.0.0
Ran alignment with combined tracks 3 Dof (to compare with TRT only case)
TRT L2 alignment can be a probe of Si deformations
Aligned with Both sides A and C:
    File with the constants here
    TRT L2 Report.

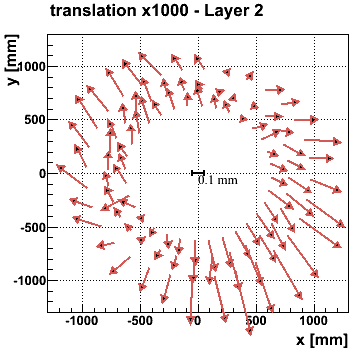

    visualization looks better than with new si constants


Wrt to Si constants for second reprocessing

Release -tag=14.5.0.4,AtlasProduction
Ran alignment with combined tracks 5 Dof
Aligned with Both sides A and C:
    This went in the db as TRTAlign_Cosmics_2008_05
    File with the constants to go here
    TRT Report to go here.
     See manuels report here.

Aligned with side A Only:
     File with the constants here
     TRT Report here.

Aligned with side C Only:
     File with the constants here
     TRT Report here.

Before further studies the move was made to rel 15, see mainpage for details.
Release -tag=15.0.0
Ran alignment with combined tracks 5 Dof
Aligned with Both sides A and C:
    This needs to go in db
     File with the constants here
      Details here.

Ran alignment with combined tracks 3 Dof (to compare with TRT only case)
TRT L2 alignment can be a probe of Si deformations
Aligned with Both sides A and C:
     File with the constants here
     TRT L2 Report.

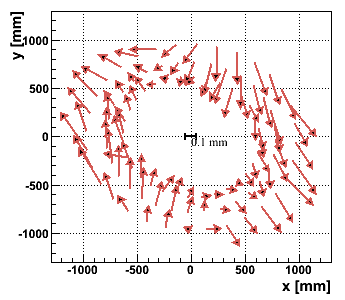

Update the visualization here:
